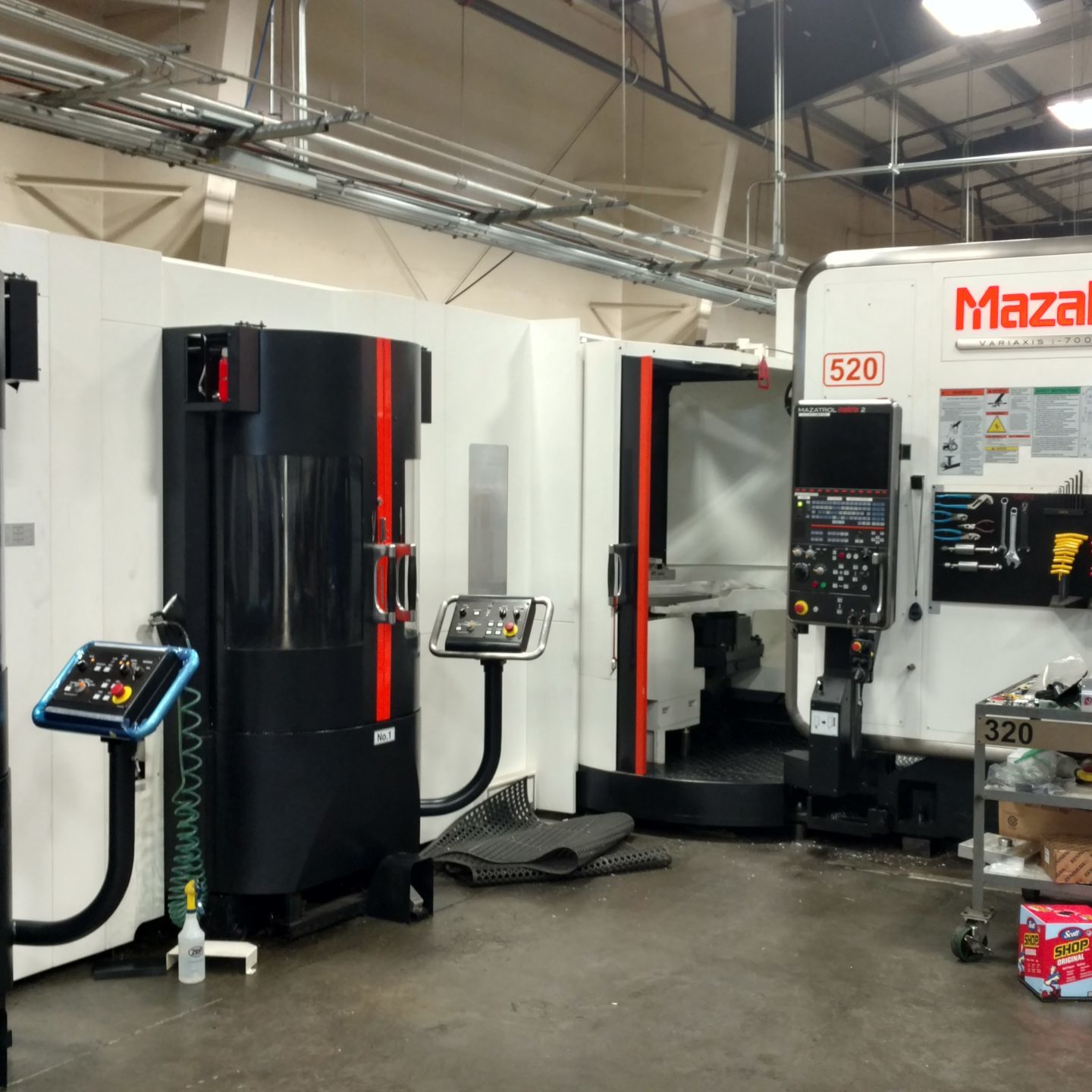

Cell

5-Axis CNC Mills in a 40-pallet cell:

  • I700 X,Y,Z travels ~24X24X24 120 tools 18,000 RPM Spindle
  • I700 X,Y,Z travels ~24X24X24 90 tools 12,000 RPM Spindle

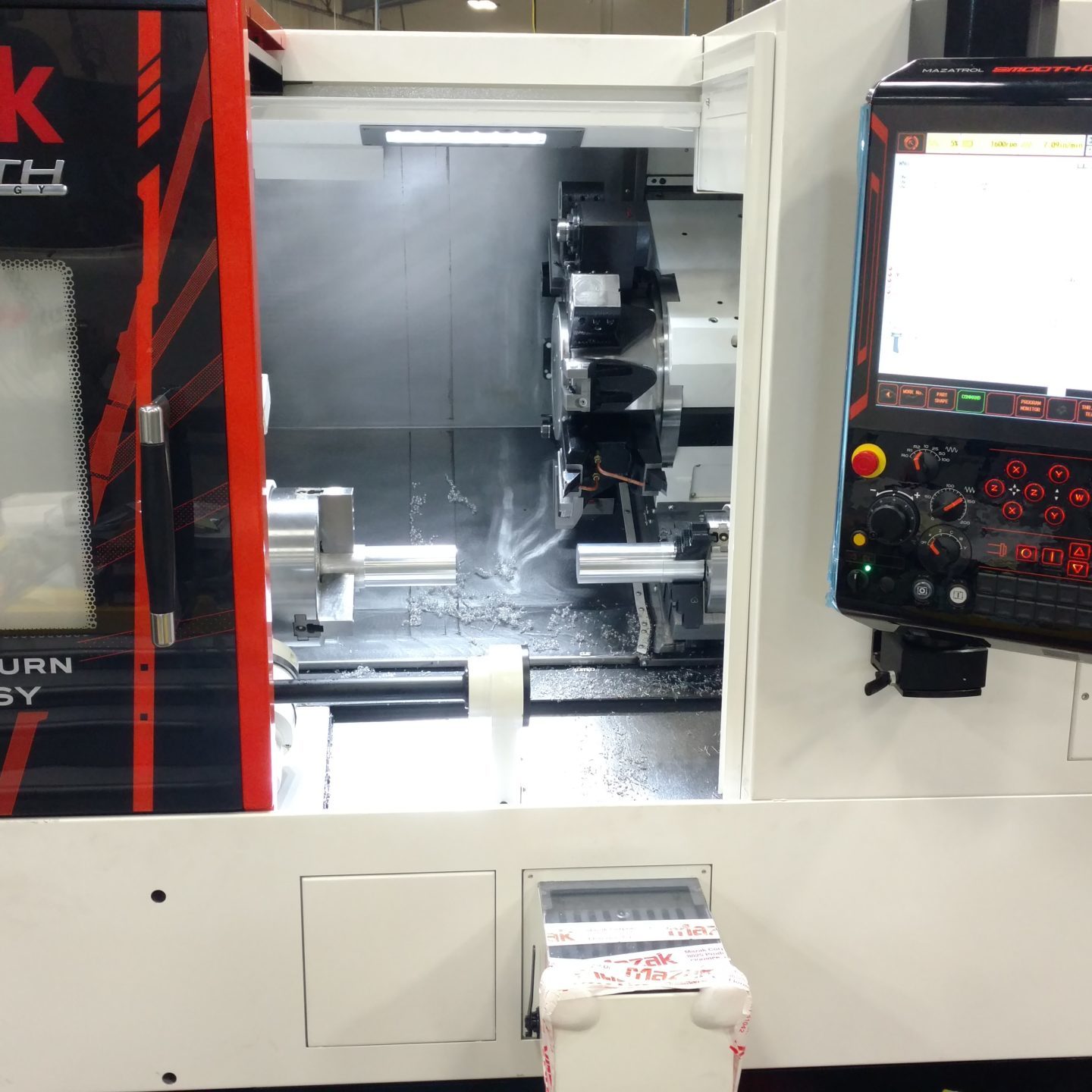

250MSY-new

Turning centers:

  • QTN250 10” Chuck 3” thru bore ~14” X 20” Capacity, 12 tools
  • HAAS TL2

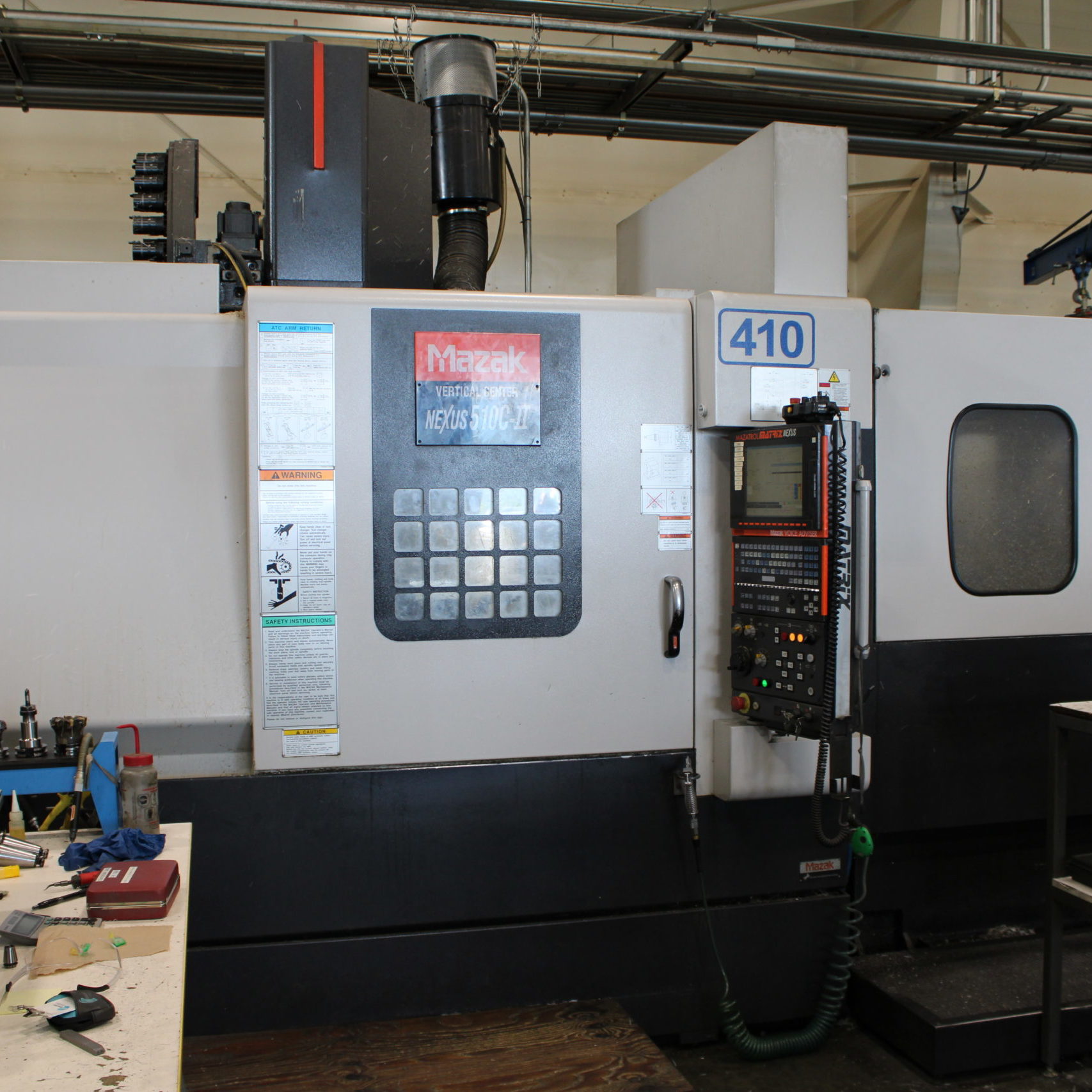

410Mill

3-Axis CNC Mills:

  • 510C-II  X,Y,Z travels 40X20X20 30 tools 12,0000 RPM Spindle 2-Pallets
  • 510C-II  X,Y,Z travels 40X20X20 48 tools 12,0000 RPM Spindle 2-Pallets
  • 510C  X,Y,Z travels 40X20X20 30 tools 12,0000 RPM Spindle
  • VTC200B X,Y,Z travels 44X20X20 24 tools 10,0000 RPM Spindle

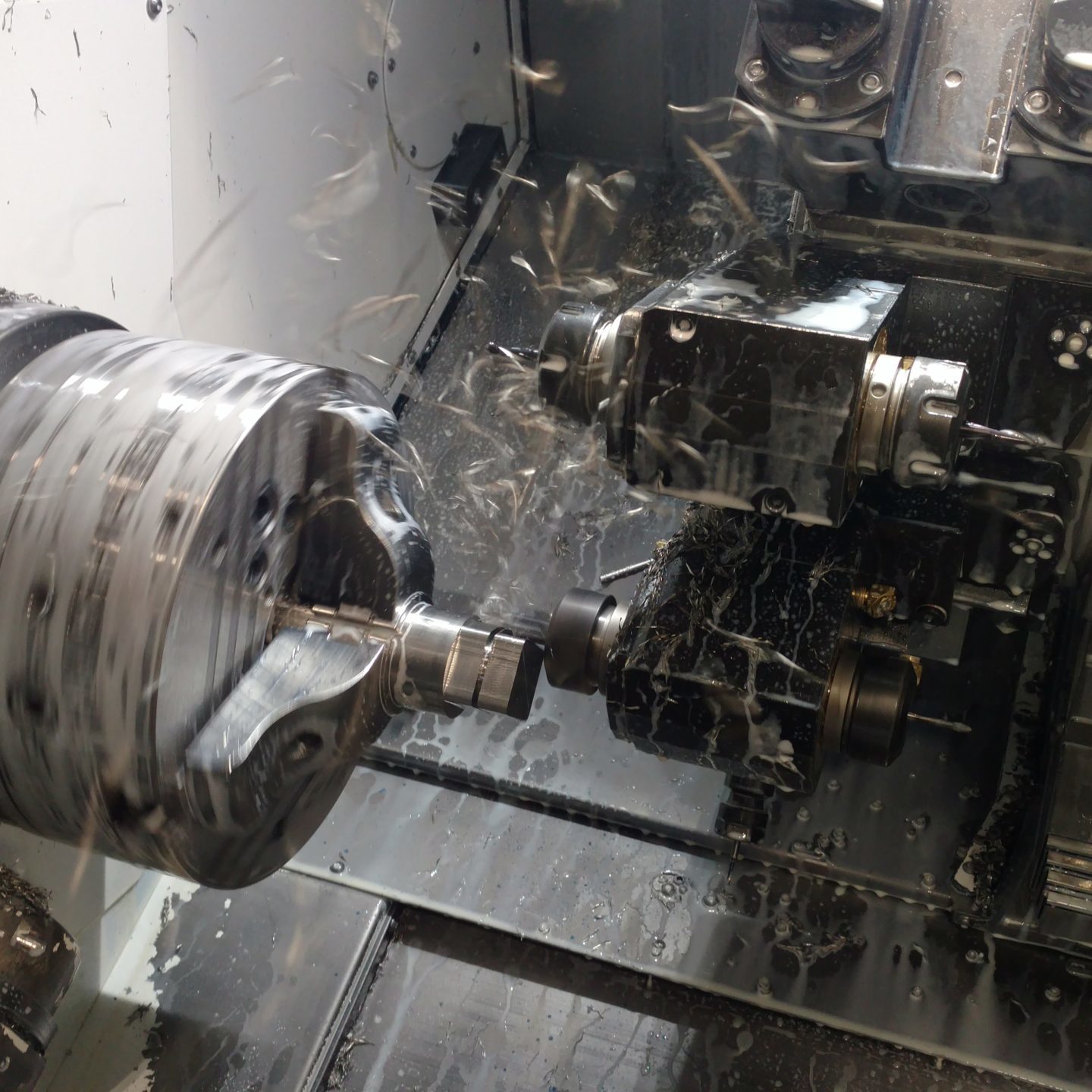

SLM-12

Live-Tool Lathes:

  • QTN350M  12” Chuck 4” thru bore ~16” X 48” Capacity, 12 tools
  • QTN350M-II 12” Chuck 4” thru bore ~16” X 28” Capacity 12 tools
  • QT250MSY 10” Chuck 3” thru bore ~14” X 21” Capacity 12 tools, Sub Spindle
  • QT250MSY 10” Chuck 3” thru bore ~14” X 21” Capacity 12 tools, Sub Spindle
  • QT250MY 10” Chuck 3” thru bore ~14” X 24” Capacity 12 tools

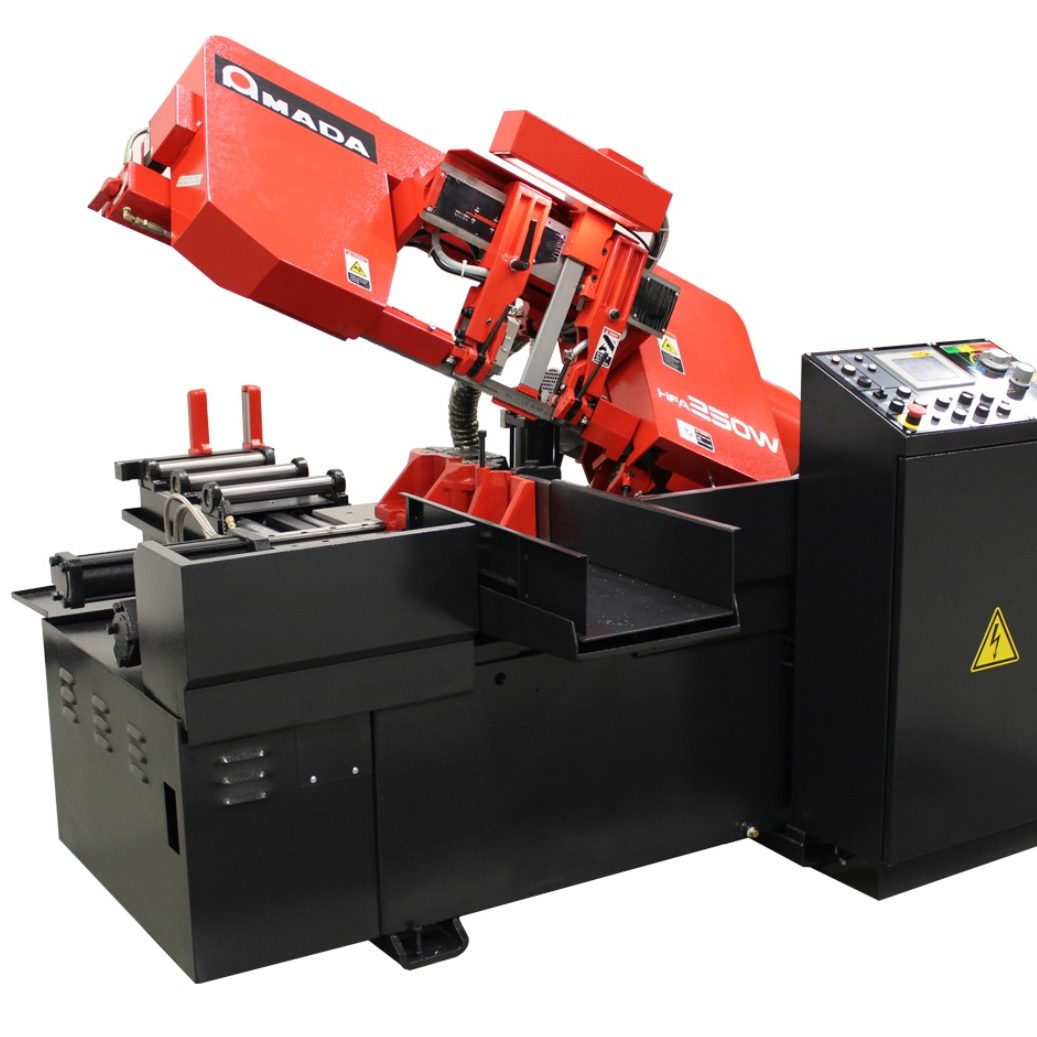

HFA250W-Saw

Sawing:

  • Amada HFA-250W 10” capacity CNC Horizontal Bandsaw

Quality

We understand that it can be difficult to trust that your designs will be machined as envisioned.  Lead time, communication, and honesty are all part of quality too; not just accurate measurements.  Our goal is to do our best to read past the drawing and exceed expectations.

PROJECTS

Bag Adapter

Eye Bolt

Agricultural Machinery

Strongback

Aerospace

Needle Valve Body

Start Your Next Custom Machined Project

--------------
--------------

The Quote

  1. Drawings, CAD models and other details are imported to the ERP system.
  2. Part design is analyzed for manufacturability concerns.
  3. Design considerations are reviewed with the customer to make sure of an accurate estimate.
  4. A quote is prepared and sent to the customer as soon as possible.
  5. The quote includes, price, terms and conditions, and lead time.

The Order

  1. The Purchase Order .PDF is saved and entered into the ERP system.
  2. Line item details (part number, description, revision level, quantity, cost and due date) are entered, verified and double checked.
  3. The PO is confirmed with all details and an accurate ETA.
  4. Work orders are tracked through the shop at every step for accurate status reporting.

The Delivery

  1. A first article inspection is checked on every work order to confirm parts are in tolerance and meet all requirements.  Parts are checked frequently throughout the job.
  2. All parts are carefully handled and packaged to survive shipment undamaged.
  3. Any required documents (Material Certs, FAIR, COCs) are checked and shipped with the parts per PO.
